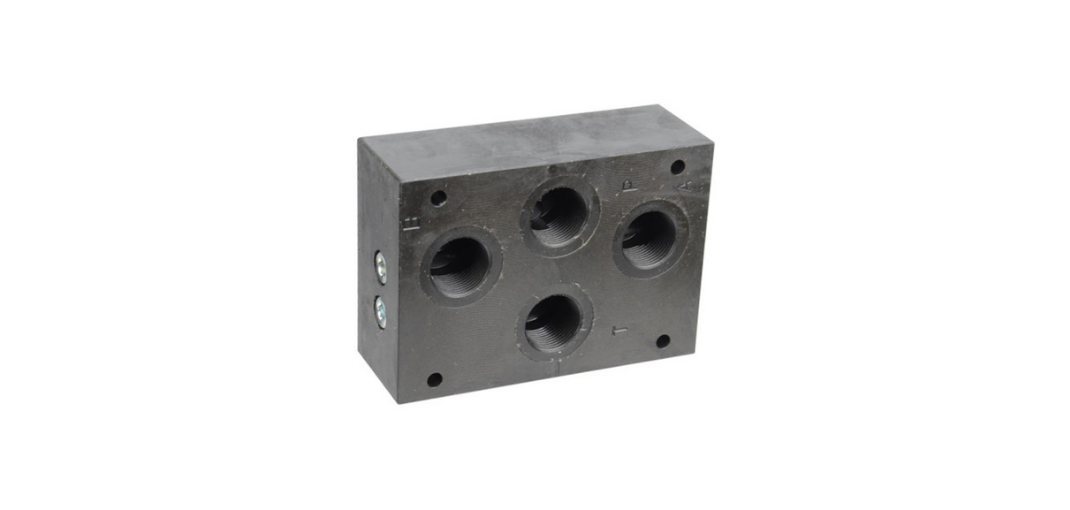

NG10 Subplate with Bottom Entry Ports G12

Description

NG10 Cetop5 Subplate with Bottom/Rear Ports – 3/4″ BSP

ES5C34P
Series: NG10 Cetop5 Manifold Monoblock
Single Subplate
Type: ES5C34P
Ports A-B-P-T are 3/4” BSP = G12 on bottom/rear
Prearrange for modular system
These Subplates have fixed holes in compliance with DIN24340 standards.
They are made of Cast Iron GG25, according to UNI EN 16482 standards.
The O-ring seal fitted on the plates are made of nitrilic – NBR – 70 Shore mix.
All subplates are supplied with manganese phosphate coat according to UNI ISO 9717 norm.
Subplates are made of material and with thread suitable for cylindrical fittings. The product is not grated for assembling with conical fittings.

Other known codes: ES-5C34P, PH-D-D05-SP-R-12B, D05-SP-R-12G, SUB-ES5C34P
