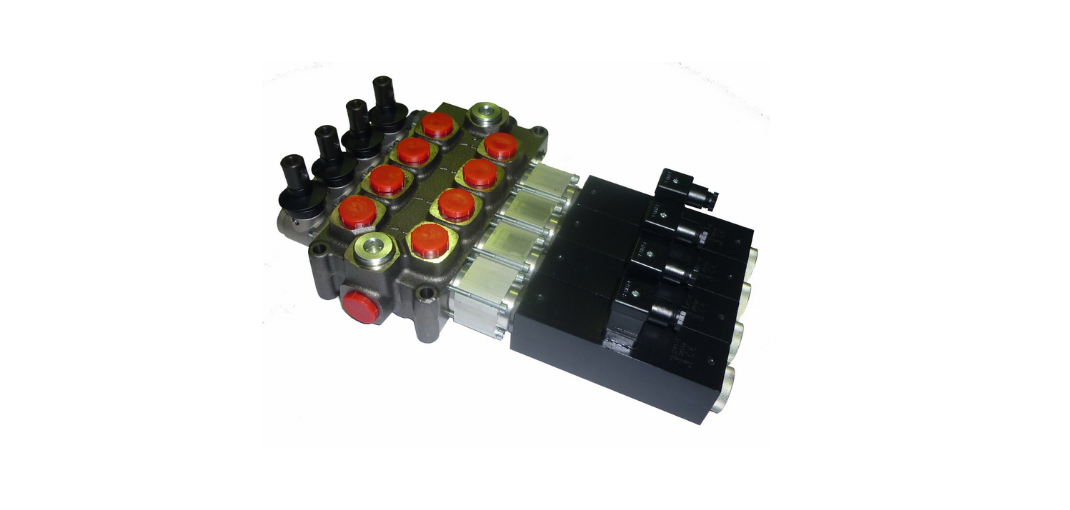

Our Range of Galtech Q75 Directional Control Valves
Single to Multi-Spool Configurations
The Galtech Q75 directional control valves are available from 1 to 6 spool sections, offering flexibility to suit different hydraulic systems. Each spool can be set up as double-acting, single-acting, or motor spools, giving operators precise control.
- Q75/1-103A1D41 – 1 Spool (75 L/min, 300 bar, 8.1kg)
- Q75/2-103A1D41 – 2 Spools (12.4kg)
- Q75/3-103A1D41 – 3 Spools (17.6kg)
- Q75/4-103A1D41 – 4 Spools (22.0kg)
- Q75/5-103A1D41 – 5 Spools (26.5kg)
- Q75/6-103A1D41 – 6 Spools (31.0kg)
Electric & Manual Operation
The Q75 series offers Galtech control valve solutions for both lever operation and electro-hydraulic actuation (12V/24V). Each valve is supplied with DIN 43650 connectors, IP65-rated solenoid coils, and levers, making them suitable for high-demand applications.
Key Specifications
- Construction: Monoblock, case-hardened steel body
- Flow Capacity: 75–90 L/min
- Max Working Pressure: 300 bar (4350 psi)
- Tank Back Pressure: Max. 25 bar
- Adjustable Relief Valve: Factory set at 150 bar (2100 psi), with higher options available
- Port Sizes: 1/2” BSPP (inlet & cylinder), 3/4” BSPP (tank)
- Operating Temperature: -20°C to +80°C
- Spool Return: Spring-centred with lever action
- Optional Features: Detent kits, power beyond sleeve, anti-shock/anti-cavitation valves, full electric operation
Applications of the Galtech Q75 Valves
The Galtech Q75 hydraulic valve is trusted for accurate flow management and control in:
- Tilt tray trucks
- Skip bin trucks
- Front-end loaders
- Backhoes
- Cranes and lifting equipment
- Agricultural, mining, and construction hydraulics
